Hello friends, we will be deploying a Netflix clone. We will be using Jenkins as a CICD tool and deploying our application on a Docker container and Kubernetes Cluster and we will monitor the Jenkins and Kubernetes metrics using Grafana, Prometheus and Node exporter.

You can find GitHub Repository from here :

GitHub – Djay-ui/NetflixContribute to Djay-ui/Netflix development by creating an account on GitHub.
github.com

Overview :

Step 1 — Launch an Ubuntu(22.04) T2 Large Instance

Step 2 — Install Jenkins, Docker and Trivy. Create a Sonarqube Container using Docker.

Step 3 — Create a TMDB API Key.

Step 4 — Install Prometheus and Grafana On the new Server.

Step 5 — Install the Prometheus Plugin and Integrate it with the Prometheus server.

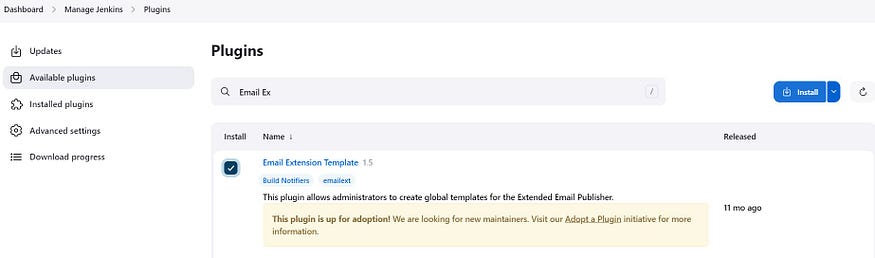

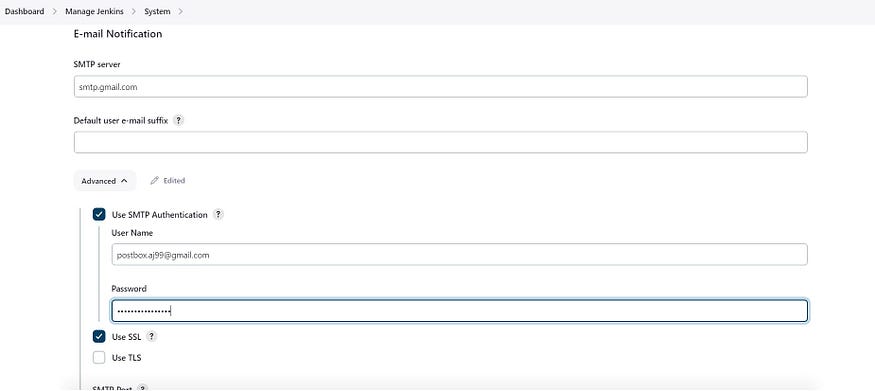

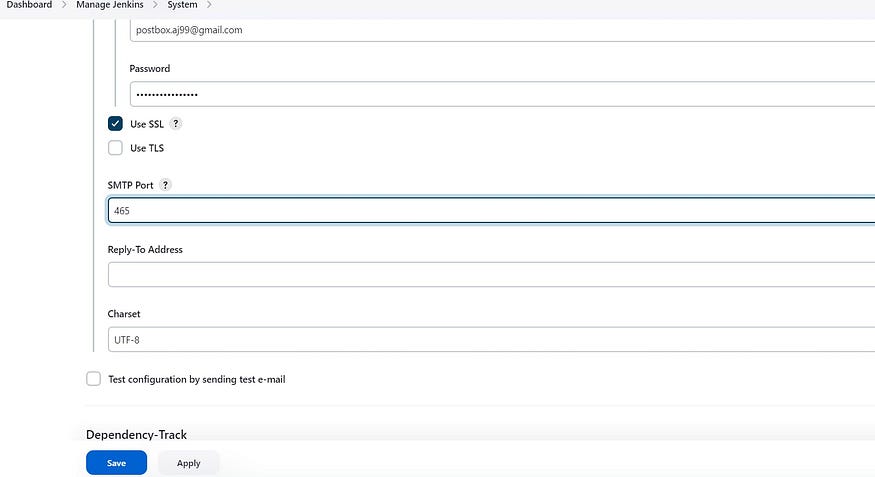

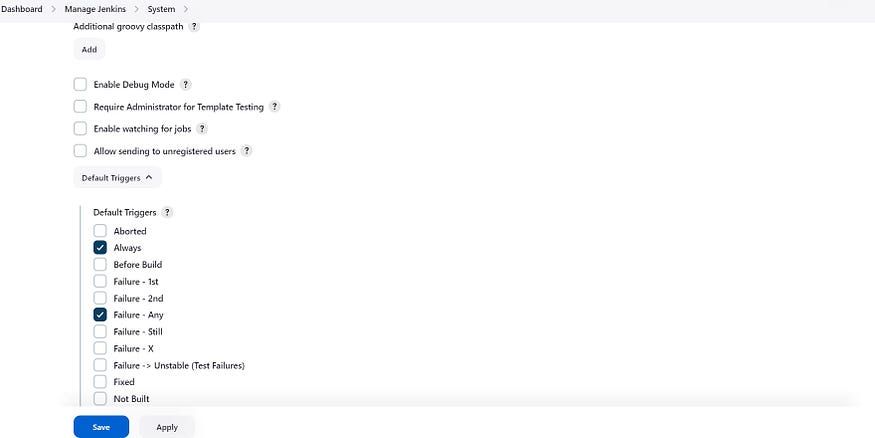

Step 6 — Email Integration With Jenkins and Plugin setup.

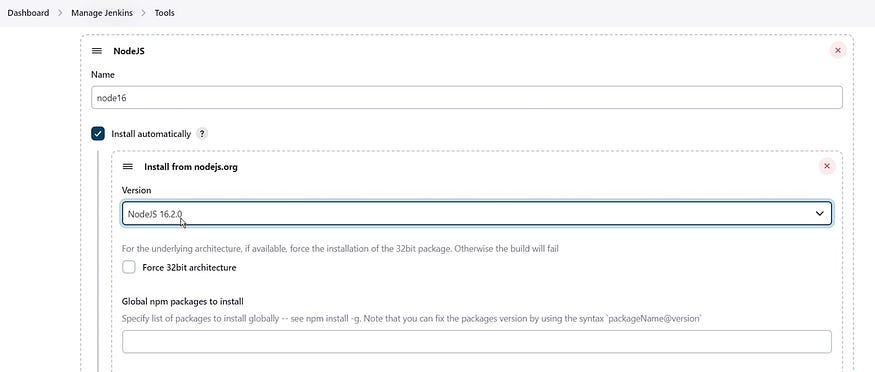

Step 7 — Install Plugins like JDK, Sonarqube Scanner, Nodejs, and OWASP Dependency Check.

Step 8 — Create a Pipeline Project in Jenkins using a Declarative Pipeline

Step 9 — Install OWASP Dependency Check Plugins

Step 10 — Docker Image Build and Push

Step 11 — Deploy the image using Docker

Step 12 — Kubernetes master and slave setup on Ubuntu (20.04)

Step 13 — Access the Netflix app on the Browser.

Step 14 — Terminate the AWS EC2 Instances.

Step 1 : Launch an Ubuntu(22.04) T2 Large Instance

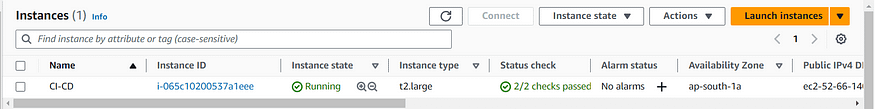

Launch an AWS T2 Large Instance. Use the image as Ubuntu. You can create a new key pair or use an existing one. Enable HTTP and HTTPS settings in the Security Group and open all ports (not best case to open all ports but just for learning purposes it’s okay).

Step 2 : Install Jenkins, Docker and Trivy

2.1 : To Install Jenkins :

Connect to your console, and enter these commands to Install Jenkins

vi jenkins.sh #make sure run in Root (or) add at userdata while ec2 launch

#!/bin/bash
sudo apt update -y
#sudo apt upgrade -y
wget -O - https://packages.adoptium.net/artifactory/api/gpg/key/public | tee /etc/apt/keyrings/adoptium.asc
echo "deb [signed-by=/etc/apt/keyrings/adoptium.asc] https://packages.adoptium.net/artifactory/deb $(awk -F= '/^VERSION_CODENAME/{print$2}' /etc/os-release) main" | tee /etc/apt/sources.list.d/adoptium.list
sudo apt update -y
sudo apt install temurin-17-jdk -y
/usr/bin/java --version
curl -fsSL https://pkg.jenkins.io/debian-stable/jenkins.io-2023.key | sudo tee \
                  /usr/share/keyrings/jenkins-keyring.asc > /dev/null
echo deb [signed-by=/usr/share/keyrings/jenkins-keyring.asc] \
                  https://pkg.jenkins.io/debian-stable binary/ | sudo tee \
                              /etc/apt/sources.list.d/jenkins.list > /dev/null
sudo apt-get update -y
sudo apt-get install jenkins -y
sudo systemctl start jenkins
sudo systemctl status jenkins

sudo chmod 777 jenkins.sh
./jenkins.sh    # this will installl jenkins

Once Jenkins is installed, you will need to go to your AWS EC2 Security Group and open Inbound Port 8080, since Jenkins works on Port 8080.

Now, grab your Public IP Address

<EC2 Public IP Address:8080>
sudo cat /var/lib/jenkins/secrets/initialAdminPassword

Unlock Jenkins using an administrative password and install the suggested plugins.

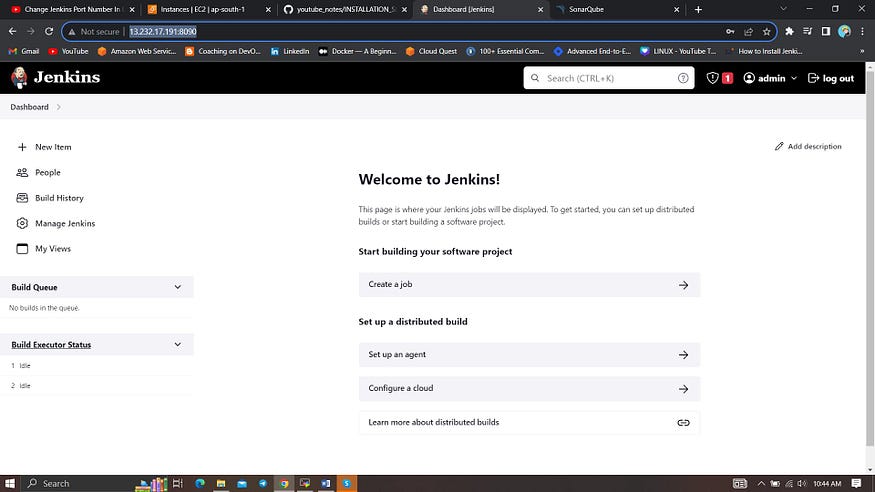

Jenkins Getting Started Screen.

2.2 : Install Docker :

sudo apt-get update
sudo apt-get install docker.io -y
sudo usermod -aG docker $USER   #my case is ubuntu
newgrp docker
sudo chmod 777 /var/run/docker.sock

After the docker installation, we create a sonarqube container (Remember to add 9000 ports in the security group).

docker run -d --name sonar -p 9000:9000 sonarqube:lts-community

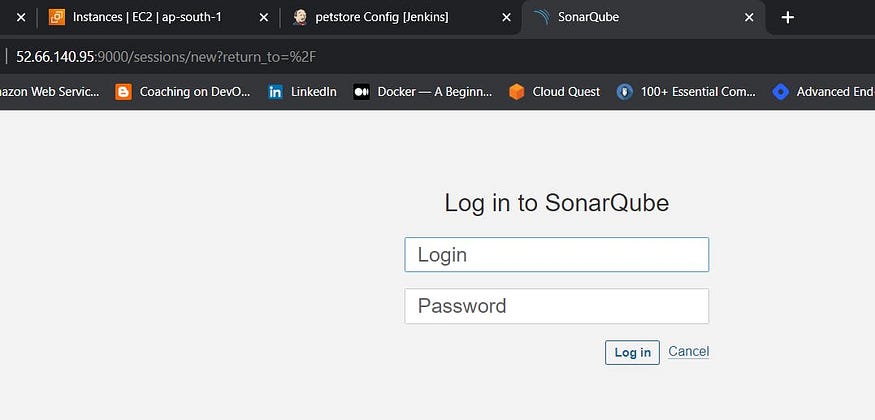

Now our sonarqube is up and running,

Enter username as admin

and password as admin ,

click on login and change password

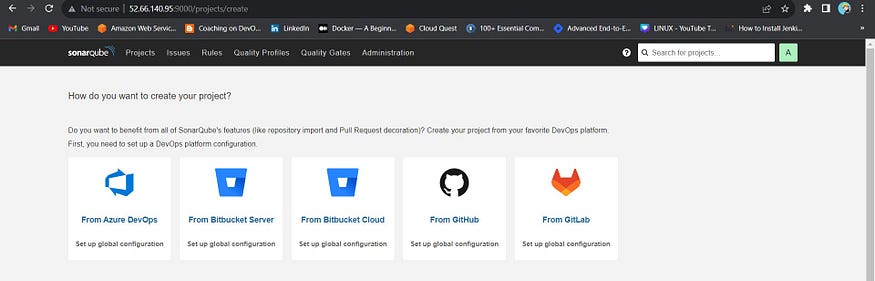

This is Sonar Dashboard.

2.3 : Install Trivy :

vi trivy.sh

sudo apt-get install wget apt-transport-https gnupg lsb-release -y
wget -qO - https://aquasecurity.github.io/trivy-repo/deb/public.key | gpg --dearmor | sudo tee /usr/share/keyrings/trivy.gpg > /dev/null
echo "deb [signed-by=/usr/share/keyrings/trivy.gpg] https://aquasecurity.github.io/trivy-repo/deb $(lsb_release -sc) main" | sudo tee -a /etc/apt/sources.list.d/trivy.list
sudo apt-get update
sudo apt-get install trivy -y

Step 3 : Create a TMDB API Key

Next, we will create a TMDB API key. Open a new tab in the Browser and search for TMDB

Click on the first result, you will see this page

Click on the Login on the top right. You will get this page.

You need to create an account here. click on click here. I have account that’s why i added my details there.

Let’s create an API key, By clicking on your profile and clicking settings.

Now click on API from the left side panel.

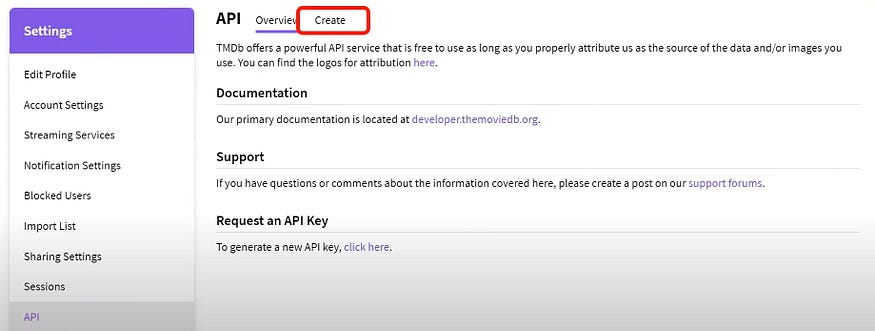

Now click on create

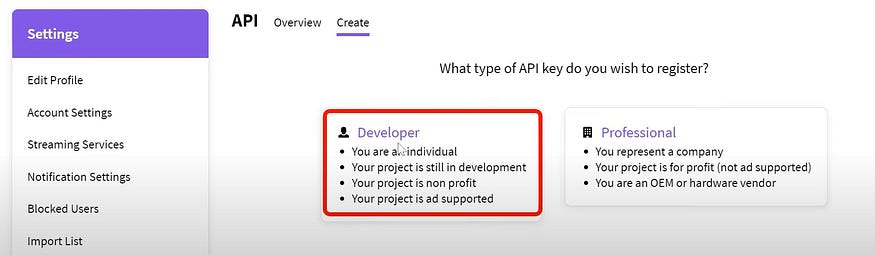

Click on Developer

Accept the terms and conditions, Provide basic details .Click on submit and you will get your API key.

Step 4 : Install Prometheus and Grafana On the new Server : (On Second EC2 Instance)

First of all, let’s create a dedicated Linux user sometimes called a system account for Prometheus. Having individual users for each service serves two main purposes,

It is a security measure to reduce the impact in case of an incident with the service.It simplifies administration as it becomes easier to track down what resources belong to which service.

To create a system user or system account, run the following command:

sudo useradd \
    --system \
    --no-create-home \
    --shell /bin/false prometheus

– -system : Will create a system account
– -no-create-home : We don’t need a home directory for Prometheus or any other system accounts in our case.
– -shell /bin/false : It prevents logging in as a Prometheus user.

Prometheus — Will create a Prometheus user and a group with the same name.

You can use the curl or wget command to download Prometheus.

wget https://github.com/prometheus/prometheus/releases/download/v2.47.1/prometheus-2.47.1.linux-amd64.tar.gz

Then, we need to extract all Prometheus files from the archive.

tar -xvf prometheus-2.47.1.linux-amd64.tar.gz

Usually, you would have a disk mounted to the data directory. For this tutorial, I will simply create a /data directory. Also, you need a folder for Prometheus configuration files.

sudo mkdir -p /data /etc/prometheus

Now, let’s change the directory to Prometheus and move some files.

cd prometheus-2.47.1.linux-amd64/

First of all, let’s move the Prometheus binary and a promtool to the /usr/local/bin/.

promtool is used to check configuration files and Prometheus rules.

sudo mv prometheus promtool /usr/local/bin/

Optionally, we can move console libraries to the Prometheus configuration directory. Console templates allow for the creation of arbitrary consoles using the Go templating language. You don’t need to worry about it if you’re just getting started.

sudo mv consoles/ console_libraries/ /etc/prometheus/

Finally, let’s move the example of the main Prometheus configuration file.

sudo mv prometheus.yml /etc/prometheus/prometheus.yml

To avoid permission issues, you need to set the correct ownership for the /etc/prometheus/ and data directory.

sudo chown -R prometheus:prometheus /etc/prometheus/ /data/

Verify that you can execute the Prometheus binary by running the following command :

prometheus --version

To get more information and configuration options, run Prometheus Help.

prometheus --help

We’re going to use Systemd, which is a system and service manager for Linux operating systems. For that, we need to create a Systemd unit configuration file.

sudo vim /etc/systemd/system/prometheus.service

Prometheus.service :

[Unit]
Description=Prometheus
Wants=network-online.target
After=network-online.target

StartLimitIntervalSec=500
StartLimitBurst=5

[Service]
User=prometheus
Group=prometheus
Type=simple
Restart=on-failure
RestartSec=5s
ExecStart=/usr/local/bin/prometheus \
  --config.file=/etc/prometheus/prometheus.yml \
  --storage.tsdb.path=/data \
  --web.console.templates=/etc/prometheus/consoles \
  --web.console.libraries=/etc/prometheus/console_libraries \
  --web.listen-address=0.0.0.0:9090 \
  --web.enable-lifecycle

[Install]
WantedBy=multi-user.target

Let’s go over a few of the most important options related to Systemd and Prometheus. Restart — Configures whether the service shall be restarted when the service process exits, is killed, or a timeout is reached.

RestartSec — Configures the time to sleep before restarting a service.

User and Group — Are Linux user and a group to start a Prometheus process.

– -config.file=/etc/prometheus/prometheus.yml — Path to the main Prometheus configuration file.

– -storage.tsdb.path=/data — Location to store Prometheus data.

– -web.listen-address=0.0.0.0:9090 — Configure to listen on all network interfaces. In some situations, you may have a proxy such as nginx to redirect requests to Prometheus. In that case, you would configure Prometheus to listen only on localhost.

-web.enable-lifecycle — Allows to manage Prometheus, for example, to reload configuration without restarting the service.

To automatically start the Prometheus after reboot, run enable.

sudo systemctl enable prometheus

Then just start the Prometheus and check the status of Prometheus

sudo systemctl start prometheus
sudo systemctl status prometheus

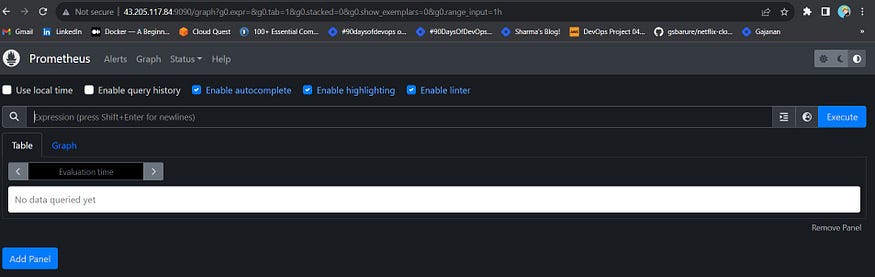

Now we can try to access it via the browser. I’m going to be using the IP address of the Ubuntu server. You need to append port 9090 to the IP.

<public-ip:9090> #second Ec2 public ip

4.1 Install Node Exporter on Ubuntu 22.04

Next, we’re going to set up and configure Node Exporter to collect Linux system metrics like CPU load and disk I/O. Node Exporter will expose these as Prometheus-style metrics. Since the installation process is very similar, I’m not going to cover as deep as Prometheus.

First, let’s create a system user for Node Exporter by running the following command:

sudo useradd \
    --system \
    --no-create-home \
    --shell /bin/false node_exporter

Use the wget command to download the binary.

wget https://github.com/prometheus/node_exporter/releases/download/v1.6.1/node_exporter-1.6.1.linux-amd64.tar.gz

Extract the node exporter from the archive.

tar -xvf node_exporter-1.6.1.linux-amd64.tar.gz

Move binary to the /usr/local/bin.

sudo mv \
  node_exporter-1.6.1.linux-amd64/node_exporter \
  /usr/local/bin/

Verify that you can run the binary.

node_exporter --version

Next, create a similar systemd unit file As Prometheus ,

sudo vim /etc/systemd/system/node_exporter.service

node_exporter.service

[Unit]
Description=Node Exporter
Wants=network-online.target
After=network-online.target

StartLimitIntervalSec=500
StartLimitBurst=5

[Service]
User=node_exporter
Group=node_exporter
Type=simple
Restart=on-failure
RestartSec=5s
ExecStart=/usr/local/bin/node_exporter \
    --collector.logind

[Install]
WantedBy=multi-user.target

To automatically start the Node Exporter after reboot, enable and start the service.

sudo systemctl enable node_exporter
sudo systemctl start node_exporter
sudo systemctl status node_exporter

At this point, we have only a single target in our Prometheus. There are many different service discovery mechanisms built into Prometheus. For example, Prometheus can dynamically discover targets in AWS, GCP, and other clouds based on the labels. In the following tutorials, I’ll give you a few examples of deploying Prometheus in a cloud-specific environment. For this tutorial, let’s keep it simple and keep adding static targets. Also, I have a lesson on how to deploy and manage Prometheus in the Kubernetes cluster.

To create a static target, you need to add job_name with static_configs

sudo vim /etc/prometheus/prometheus.yml

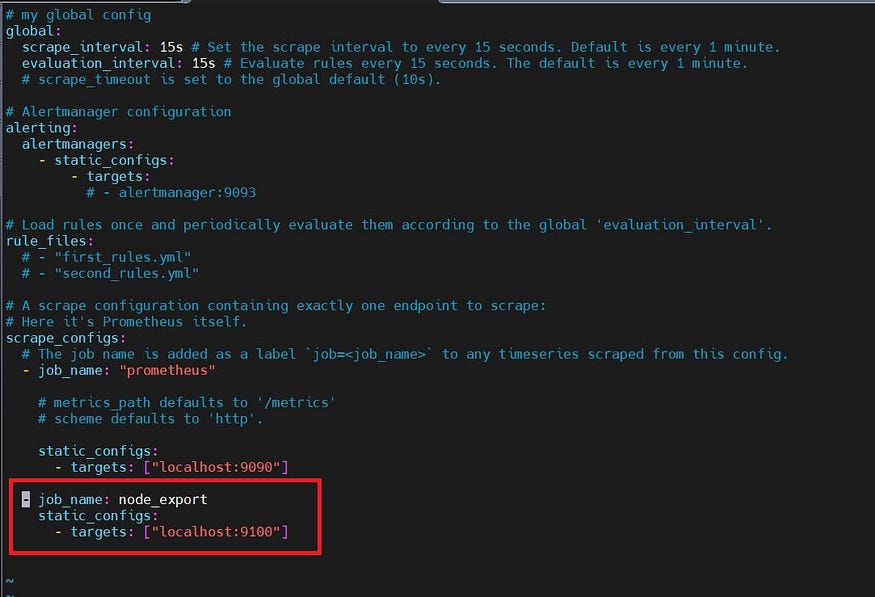

prometheus.yml

  - job_name: node_export
    static_configs:
      - targets: ["localhost:9100"]

By default, Node Exporter will be exposed on port 9100.

Since we enabled lifecycle management via API calls, we can reload the Prometheus config without restarting the service and causing downtime.

Before, restarting check if the config is valid.

promtool check config /etc/prometheus/prometheus.yml

Then, you can use a POST request to reload the config , and check the target section

curl -X POST http://localhost:9090/-/reload

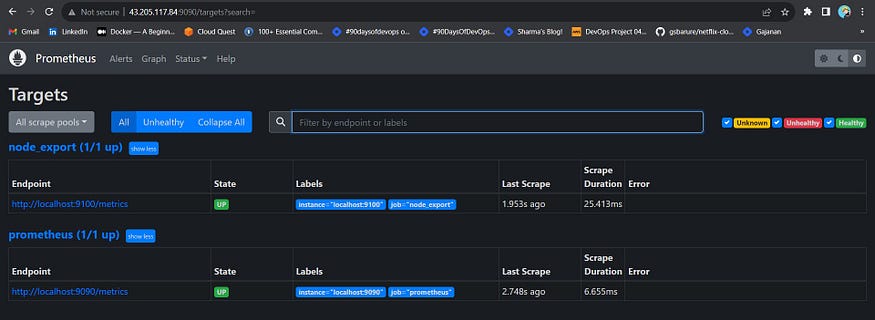

http://<ip>:9090/targets

4.2 : Install Grafana on Ubuntu 22.04

To visualize metrics we can use Grafana. There are many different data sources that Grafana supports, one of them is Prometheus.

First, let’s make sure that all the dependencies are installed.

sudo apt-get install -y apt-transport-https software-properties-common

Next, add the GPG key.

wget -q -O - https://packages.grafana.com/gpg.key | sudo apt-key add -

Add this repository for stable releases

echo "deb https://packages.grafana.com/oss/deb stable main" | sudo tee -a /etc/apt/sources.list.d/grafana.list

After you add the repository, update and install Garafana

sudo apt-get update
sudo apt-get -y install grafana

To automatically start the Grafana after reboot, enable the service.

sudo systemctl enable grafana-server
sudo systemctl start grafana-server
sudo systemctl status grafana-server

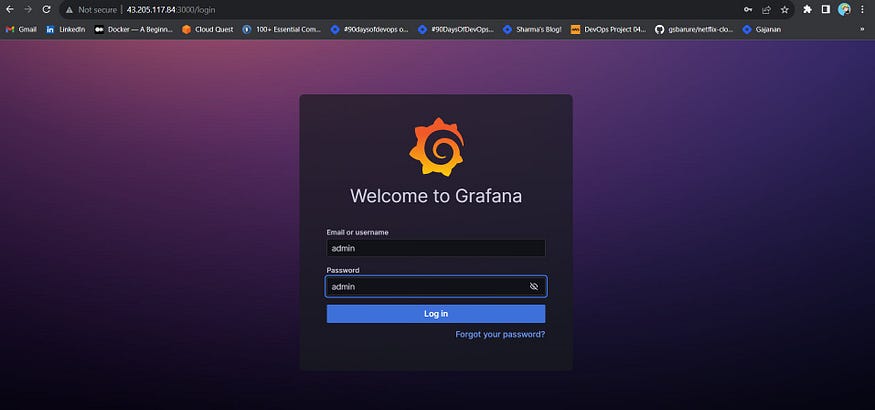

Go to http://<ip>:3000 and log in to the Grafana using default credentials. The username is admin, and the password is admin as well.

username admin
password admin

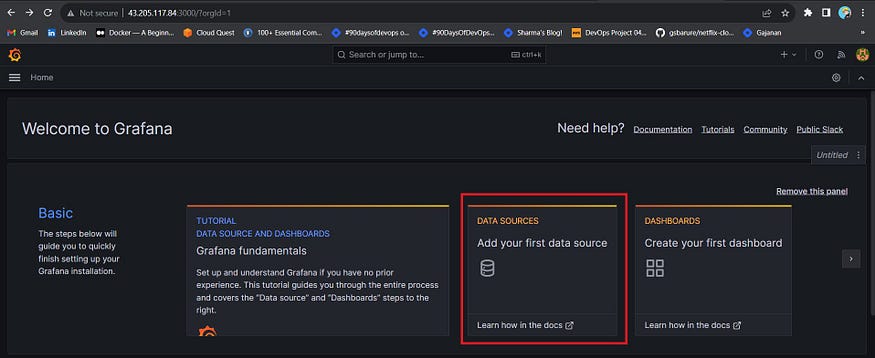

To visualize metrics, you need to add a data source first

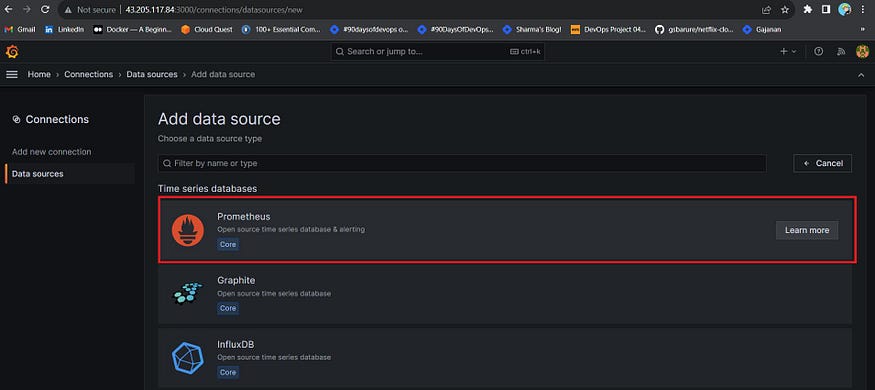

Click Add data source and select Prometheus.

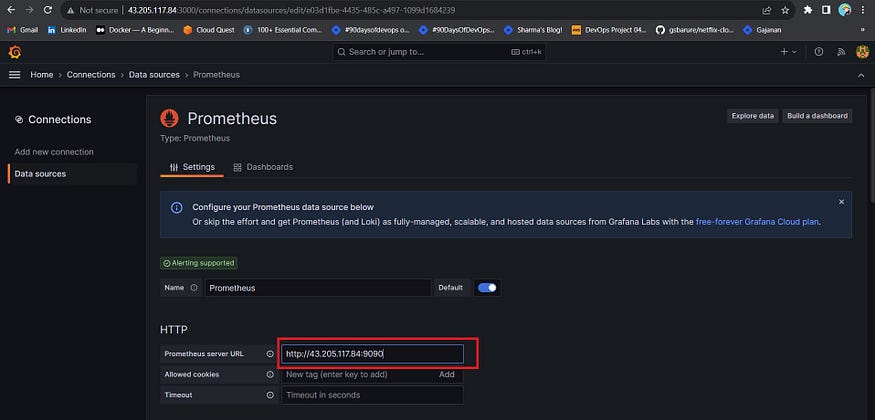

For the URL, enter localhost:9090 and click Save and test. You can see Data source is working.

<public-ip:9090>

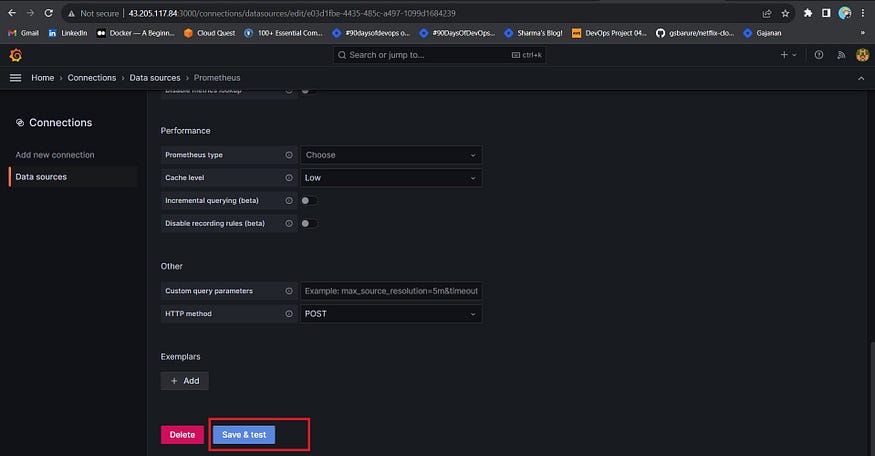

Click on Save and Test.

Let’s add Dashboard for a better view

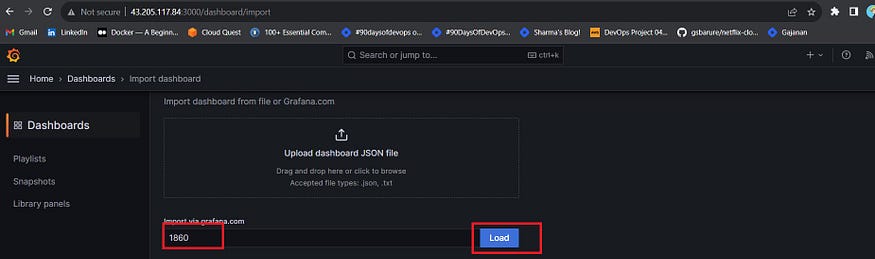

Click on Import Dashboard paste this code 1860 and click on load

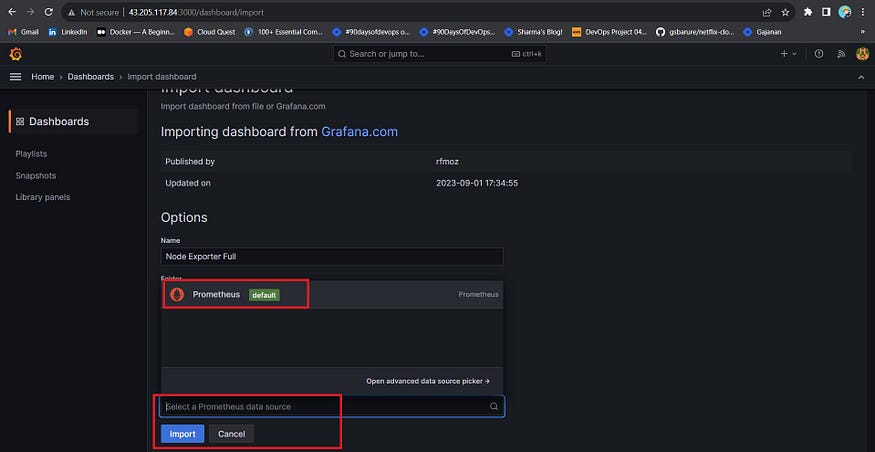

Select the Datasource and click on Import

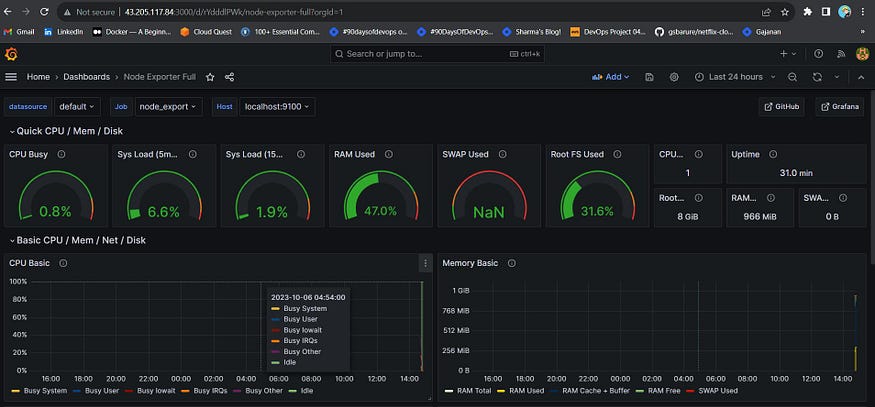

You will see this output

Step 5 : Install the Prometheus Plugin and Integrate it with the Prometheus server :

Let’s Monitor JENKINS SYSTEM

Need Jenkins up and running machine

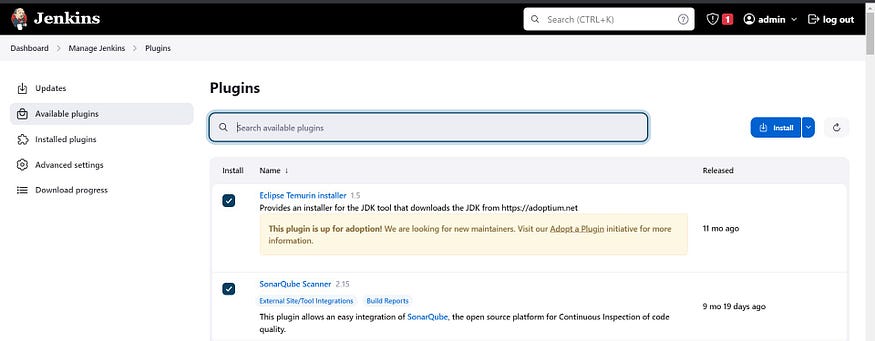

Goto Manage Jenkins → Plugins → Available Plugins

Search for Prometheus and install it

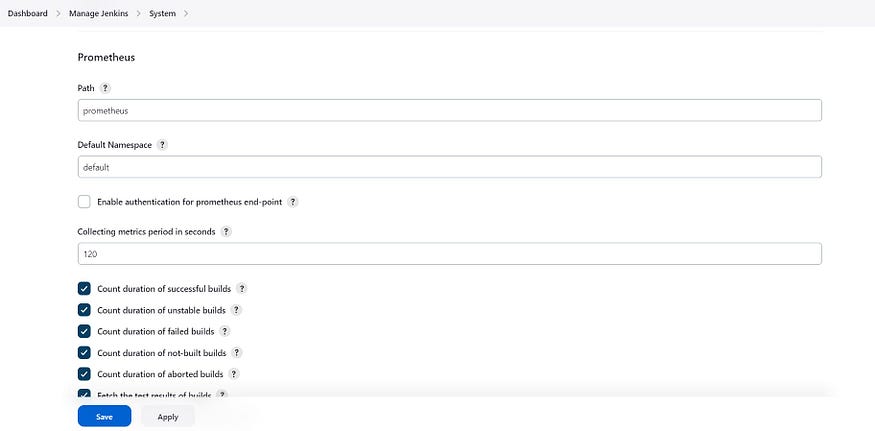

Once that is done you will Prometheus is set to /Prometheus path in system configurations

Nothing to change click on apply and save

To create a static target, you need to add job_name with static_configs. go to Prometheus server

sudo vim /etc/prometheus/prometheus.yml

Paste below code :

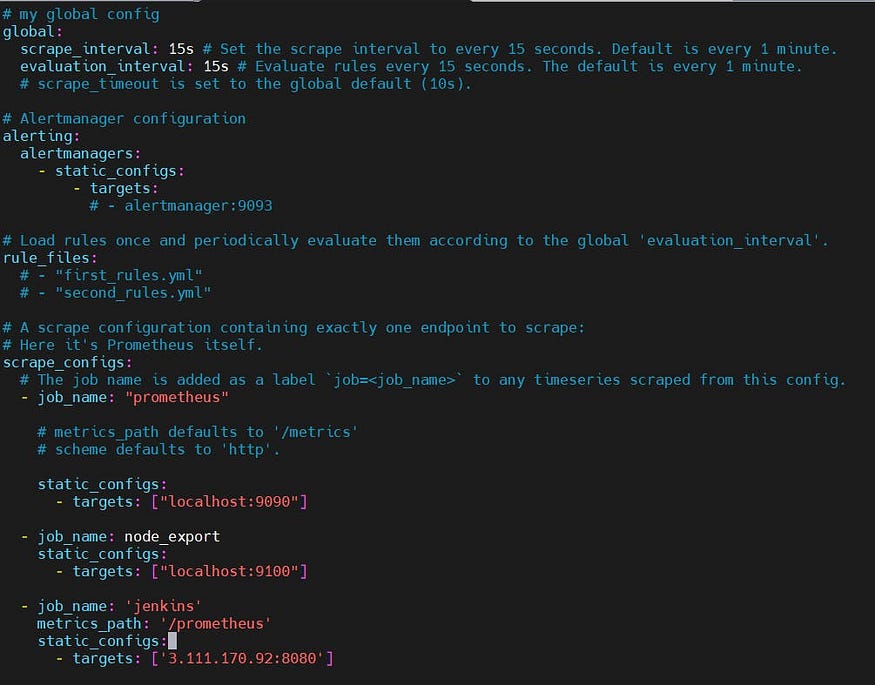

  - job_name: 'jenkins'
    metrics_path: '/prometheus'
    static_configs:
      - targets: ['<jenkins-ip>:8080']

Before, restarting check if the config is valid.

promtool check config /etc/prometheus/prometheus.yml

Then, you can use a POST request to reload the config.

curl -X POST http://localhost:9090/-/reload

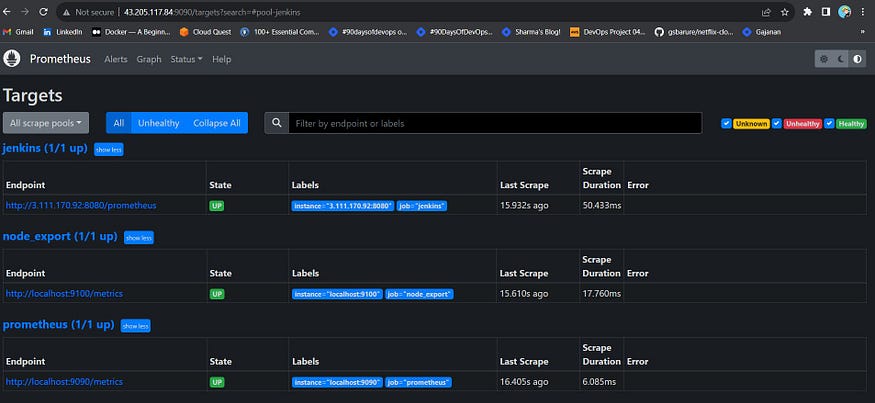

Check the targets section

http://<ip>:9090/targets

You will see Jenkins is added to it

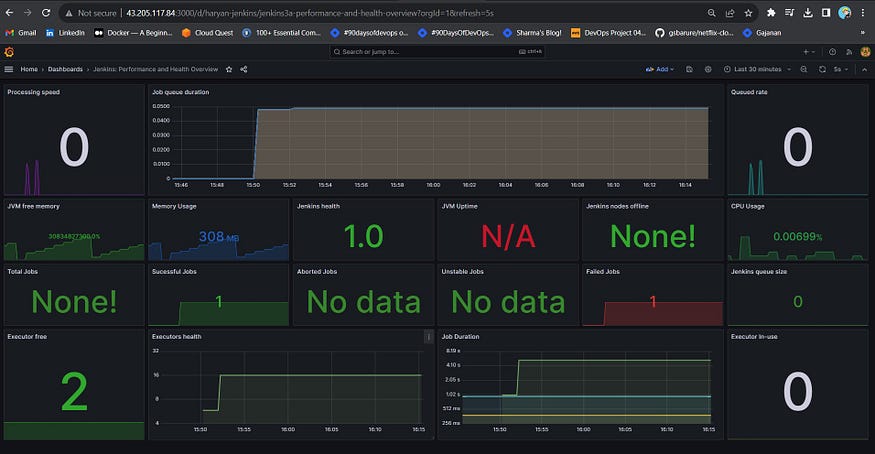

Let’s add Dashboard for a better view in Grafana

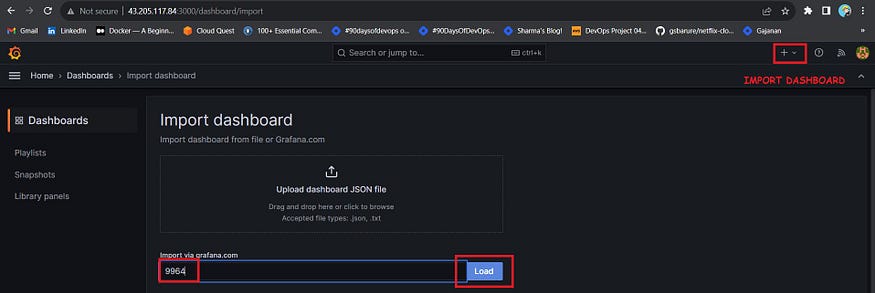

Click On Dashboard → + symbol → Import Dashboard

Use Id 9964 and click on load

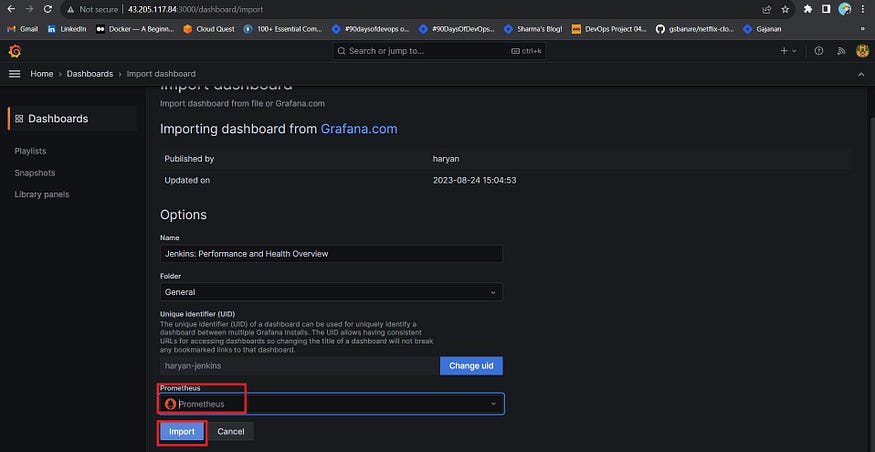

Select the data source and click on Import

Now you will see the Detailed overview of Jenkins

Step 6 : Email Integration With Jenkins and Plugin Setup :

Install Email Extension Plugin in Jenkins

Go to your Gmail and click on your profile

Then click on Manage Your Google Account → click on the security tab on the left side panel you will get this page(provide mail password).

2-step verification should be enabled.

Search for the app in the search bar you will get app passwords like the below image

Click on other and provide your name and click on Generate and copy the password

In the new update, you will get a password like this

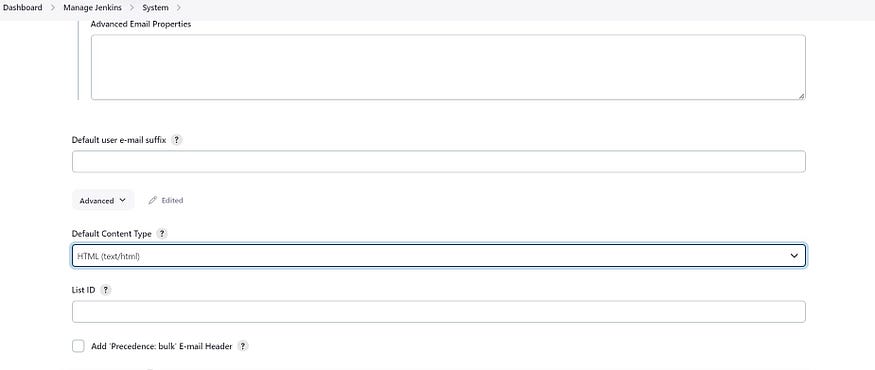

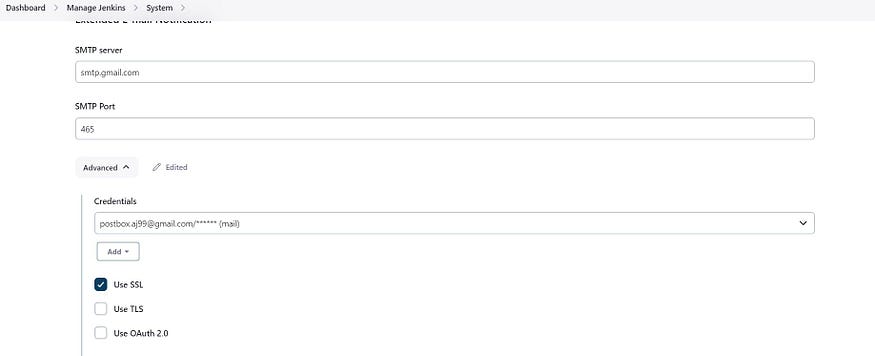

Once the plugin is installed in Jenkins, click on manage Jenkins → configure system there under the E-mail Notification section configure the details as shown in the below image
